FMUX1600/FMUX800光端机

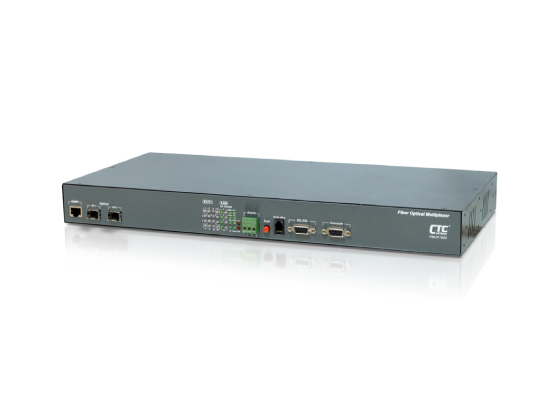

The FMUX1600/FMUX800 is 1U 19” rack mountable, PDH fiber optical Multiplexer that transmits up to 16/8 E1/T1 + 4 x 10/100/1000Base-T Gigabit Ethernet over a single fiber optic link. The FMUX1600/FMUX800 chassis in available in three different power configurations; single AC, single DC, or AC+DC. The AC supplies operate from 90 ~ 240VAC while DC supplies operate from 18~60VDC. On the rear of the chassis, the BNC model provides 32/16 unbalanced 75 Ohm coaxial connections with BNC connectors while the RJ-45 model provides 16/8 balanced 120 Ohm connections over twisted pair wiring with RJ45 connectors . With two SFP sockets on fiber ports, the FMUX1600/FMUX800 gives you the fiber cabling connector SFP-LC, both multi-mode and single-mode are available as well as BiDi which allows bi-directional transmissions using only a single fiber cable. 1+1 Automatic optical line protection is also supported for the aggregate fiber ports. The standard FMUX1600/FMUX800 configuration may be viewed or set via serial VT-100 terminal connection or SNMP card with web, telnet, and SNMP management.

Features:

⊙ Provides 16/8 E1/T1 G.703 transparent transmission over fiber
⊙ Provides 4x 10/100/1000 Mbit/s Ethernet Ports and 1x RS232 ch.
⊙ Provides one RS232 channel
⊙ Loopback test on E1/T1 fiber port
⊙ Provides one hotline channel (order-wire)
⊙ Supports full/half duplex, 10M/100M/1000M, auto-Negotiation
⊙ Forward 10K byte jumbo packets on Ethernet port
⊙ Supports 1+1 fiber line protection. Less than 50ms
⊙ Complete alarm function and can monitor remote device status
⊙ Power combination AC220V and DC-48V for redundant options
⊙ Supports RS232 local management; Supports on-line f/w upgrade
⊙ Supports Web, Telnet, SNMP management (optional)

Application:

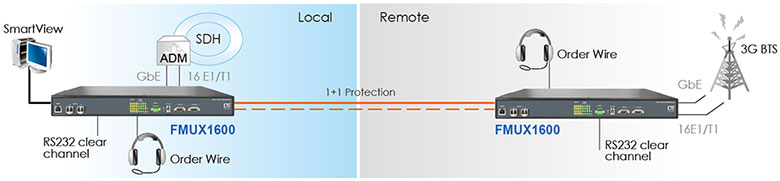

Remote 3G BTS connection Application
